Brand Name : SUNFiD
Model Number : OK-RP-12200
Certification : CE,FCC,MSDS,ROHS,UN38.3
Place of Origin : CHINA
MOQ : 50pcs
Price : USD610-USD680 per pcs
Payment Terms : L/C, T/T, Western Union
Supply Ability : 1000 pcs per month
Delivery Time : 10-30 days
Packaging Details : Hard Paper Carton with Foam From Top and Button
Materia : plastic
Voltage : 12.8V
Capacity : 200Ah
Energy : 2.56KWH
Dimensions : 520(L) x267(W) x 220(H)mm Customzied
Max. constant current : 80A Customzied
Cycle life : 60% DOD 4000 cycles

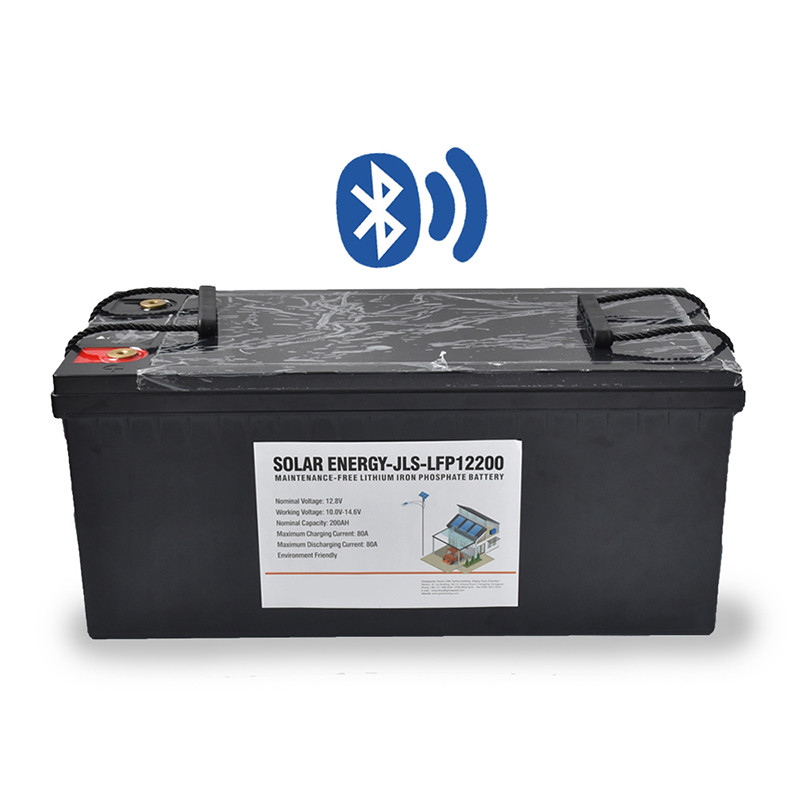

Built in bluetooth BMS Version Available
Bluetooth BMS Features
Cells Balance Function
Support Monitor Battery Information On Mobile App in real time Any Time Anywhere
Grade A Prismatic Cells Assembling
plateau fast and more stable
Advantages Lithium VS Lead Acid
1 Greater energy density, providing more usable power in the same space
2 Superior charge and discharge capabilities
3 Improved unit safety
Display Screen Can be added
Support make series to get 24V 48V
Specifications | OK-RP-12200 | |
Voltage | 12.8V | |
Nominal Capacity | 200Ah | |
Weight (Approximate) | 26.6Kg | |
Energy | Normal energy | 2560 Wh |
Dimensions | Length*Width* Height | 520(L) x267(W) x 220(H)mm Customzied |
Standard Discharge | Max. constant current | 80A Customzied |
Cut-off voltage | 8V | |
Standard charge | Charge Voltage | 8V~14.6V |
Max. constant current | 80A Customzied | |
Recommended charging current and time | 20A for 10hours | |
Cycle life | 60% DOD 4000 cycles | |
Operating temperature | Charging: 0℃~45℃ | |
Discharging: -20℃~60℃ | ||
Storage temperature | Recommended range: -20℃~45℃ |
![]() |
Lead Acid Replacement 12V 100Ah Lifepo4 Lithium battery Images |
