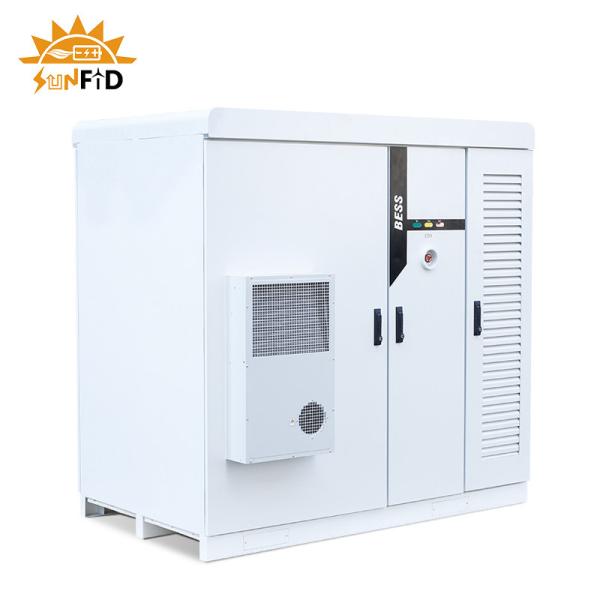

384V 192V Commercial Solar Battery Storage Systems 96V 148KWH

Name: 384V 192V Commercial Solar Battery Storage Systems 96V 148KWH
Brand: SUNFiD
Price: 1 USD

China 384V 192V Commercial Solar Battery Storage Systems 96V 148KWH wholesale

Brand Name : SUNFiD

Model Number : OK-CS-ES48100

Certification : CE,FCC,MSDS,ROHS,UN38.3

Place of Origin : CHINA

MOQ : 50pcs

Price : Negotiable Price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 pcs per months

Delivery Time : 30 Days

Packaging Details : Hard Paper Carton with Foam From Top and Button

Battery Type : LiFePO4

Nominal Voltage : 384v / 192V / 96V

Capacity : 148kwh

Cycle life : 3000 Times

System Configuration : AC380V

Application : Solar Power Storage System

Contact Now

Commercial Solar Battery Storage Systems 148KWH 384V 192V 96V high voltage electric lithium battery solar system

Description of the solar energy storage battery:

1. 148KWH high voltage energy storage power supply

2. 60KW/100KW off grid inverter off grid power storage

3. The shipment could be solar battery storage container

Quick Details:
Place of Origin: China Brand Name: OEM
Model Number: OK-CS-ES48100 Battery Type:LiFePO4
Cell Type: LFP-200Ah Nominal Voltage: 384V / 192V / 96V
Warranty: 5YEARS Weight: 2300kg
Capacity: 148kwh Cycle life: 3000 Times
Application: Solar Energy Storage Systems & Uninterruptible Power Supplies

Specification of lithium battery energy storage:

Battery Capacity(BOL)	147.84kWh

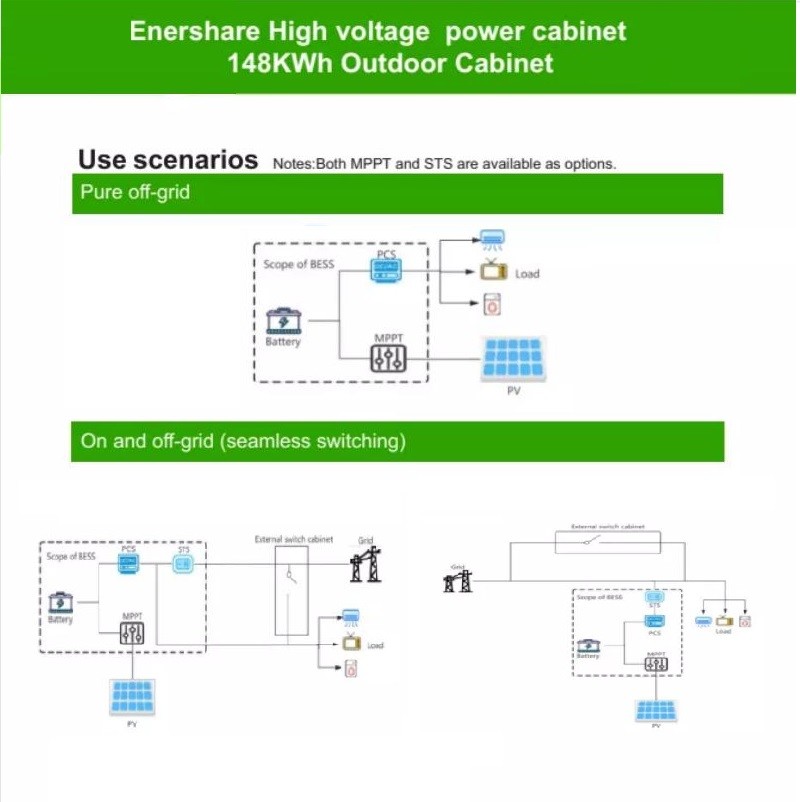

Use scenarios	On-grid/Pure off-grid/On and off-grid
AC grid connection parameters
Grid Type	3L+PE
Rated charge/discharge power	60KW
Rated grid voltage	1P210S(21 Modules)
System Configuration	AC380V
Rated grid voltage	50Hz/60Hz
Frequency range	±3Hz
Rated current	95A
Power Factor	1(Ahead)~1(Lag)
Output Harmonics	≤3%
Dimension (WHD)	1861.512671835mm
Weight	2300kg
IP Protection Rating	IP55
Seismic Intensity Rating	8(IEC60980)
Anti-corrosion grade	C4(optional C5)
Operating temperature【1】	-20℃～50℃
Working altitude【2】	＜2000m
Cycle life	5 years or more than 2000 times
Fire Fighting System	Automatic fire extinguishing
Communication protocols	Modbus TCP/IP
Cooling method	Battery section: air conditioning / power section: forced air cooling
